Product Type:
Equipment
Application:
Deposition
Product Description:

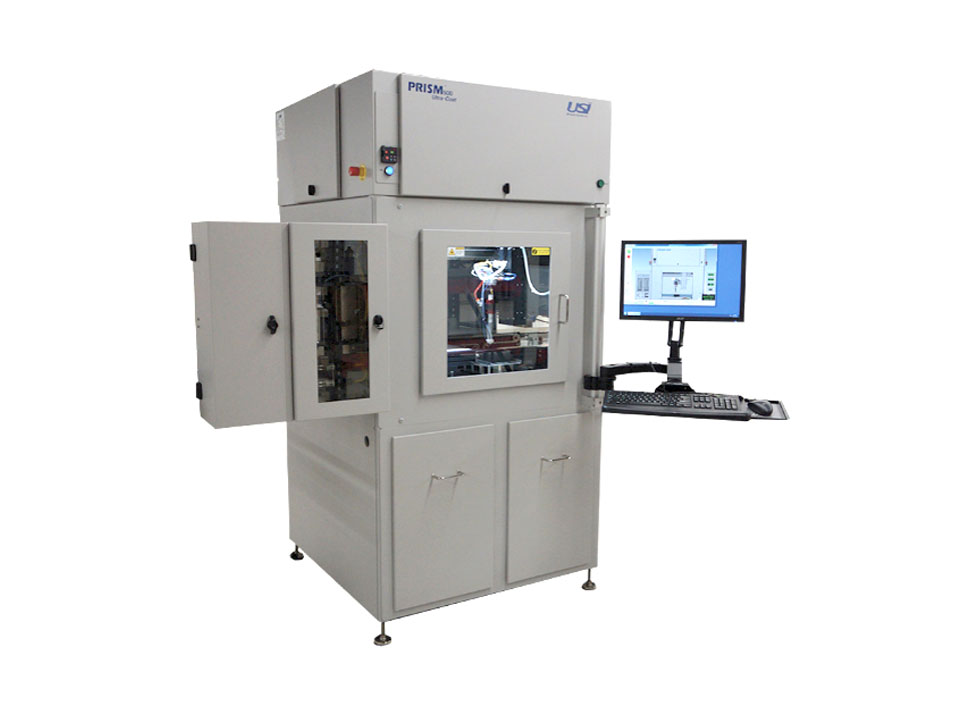

The PRISM-500 is a high performance X-Y-Z motion and positioning platform designed for the application of a wide variety of coatings. This flexible and highly configurable system is ideal for both production and R&D applications. All Prism systems leverage USI’s proprietary nozzle-less ultrasonic technology which delivers a more precise coating application than conventional spray nozzles, film coaters, roll coaters, and jetting technology
- Proprietary nozzle-less ultrasonic spray head technology
- Additional spray and dispense technologies available
- Multiple liquid delivery system configurations including:
- PMP-100 Precision Metering Pump liquid delivery system, features:
- Micro stepping positive displacement liquid metering pump
- Single or dual pump configurations available
- Optional integrated fluid stirring to keep suspensions and inks mixed
- Automatic pump refill from coating reservoir
- Data logging
- Pressurized reservoir with liquid solenoid valve for flow control
- Pressurized reservoir with agitation and liquid recirculation
- PMP-100 Precision Metering Pump liquid delivery system, features:
- Available in a batch configuration or with in-line conveyor
- Automatic spray head clean and purge
- 3- or 4-axis of motion
- Designed to spray flammable solvents
- Isolated and ventilated spray area
- Windows 7 based graphical user interface
- Optional substrate heater with vacuum
- Optional spray head rotation and tilt function
- Robot load lift/shuttle station available
file_downloadPRISM-500_800-Promotion.zip
Configurable, flexible platform to suit the requirements of precison coating applications in various markets, including:
- Semiconductor Packaging
- Display
- Fuel Cell
- Medical
- Electronics Assembly
