LEVIFLOW® LFS Series
Ultrasonic High Precision Non-invasive Flow Measurement

LEVIFLOW®flowmeter series are designed for non invasive high precision flow measurements of high purity fluids.

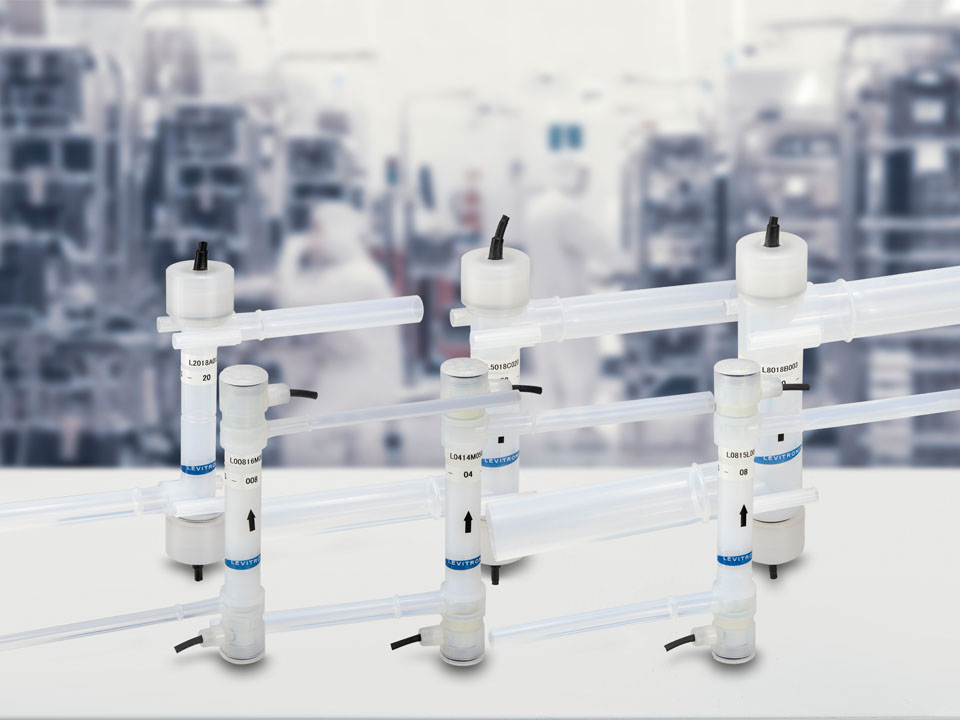

Five flow sensor sizes are available to measure flows from the ml/min range up to 80 l/min.

LFS Flowmeter Series – Flow Ranges

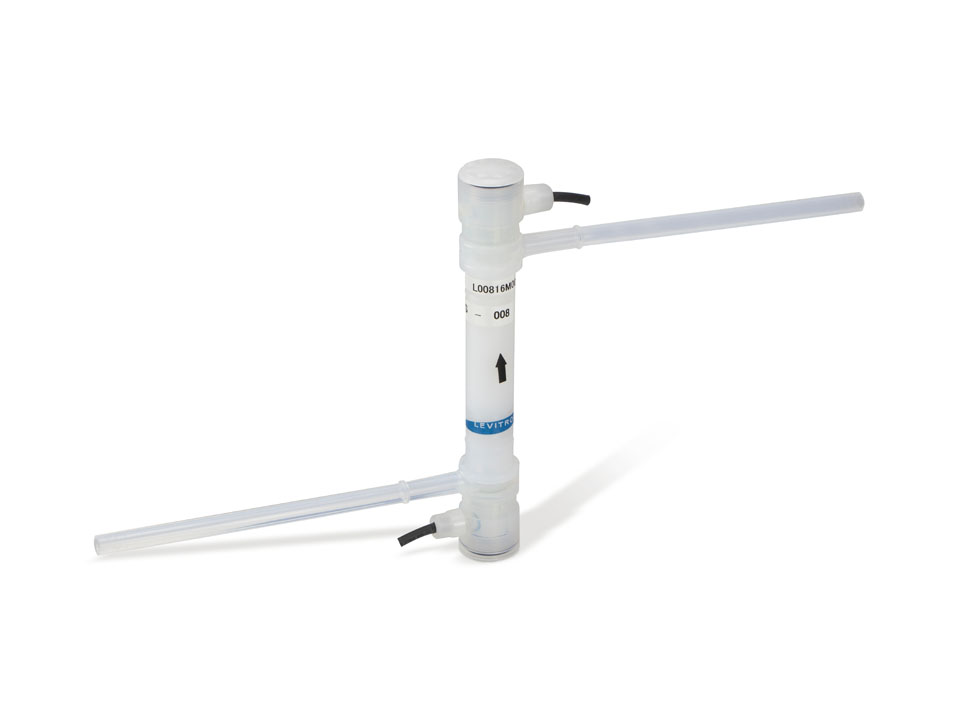

LFS-008: 0 – 0.8 l/min

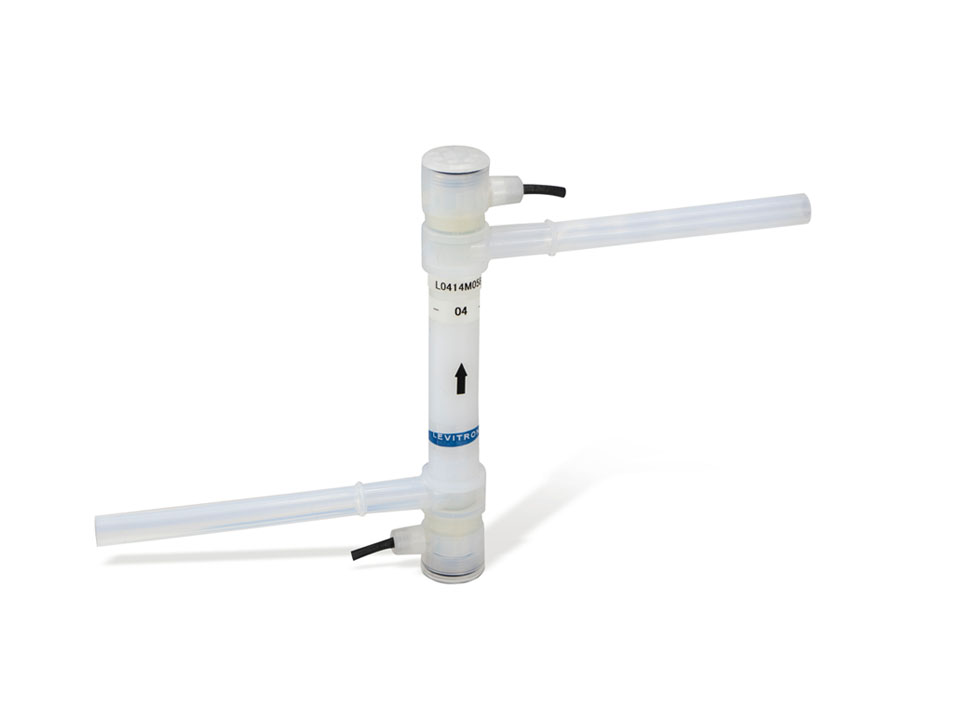

LFS-04: 0 – 4 l/min

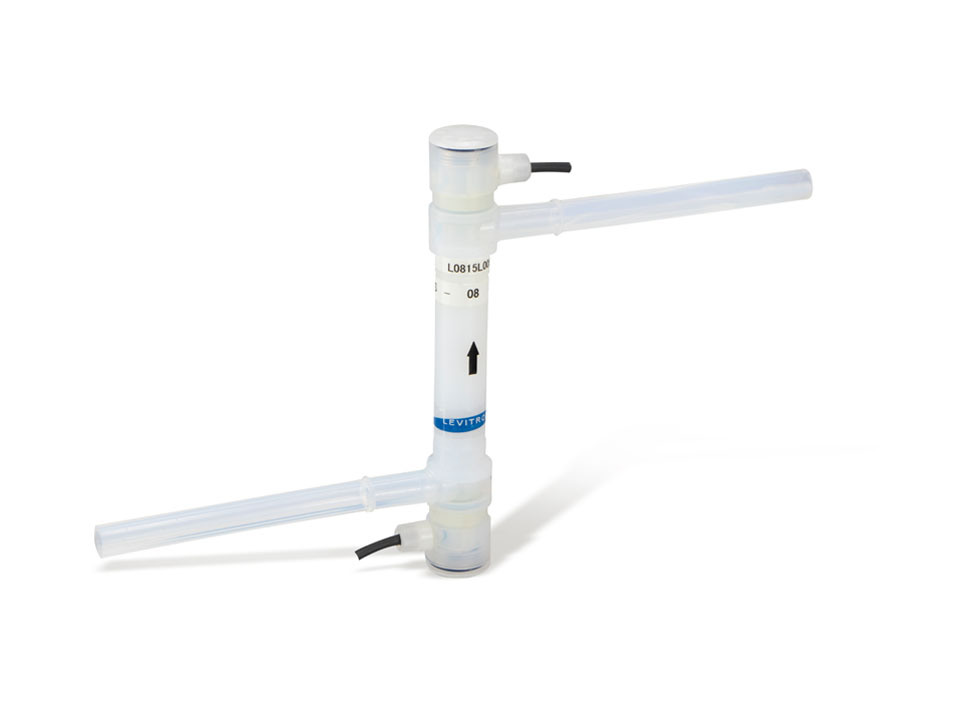

LFS-08: 0 – 8 l/min

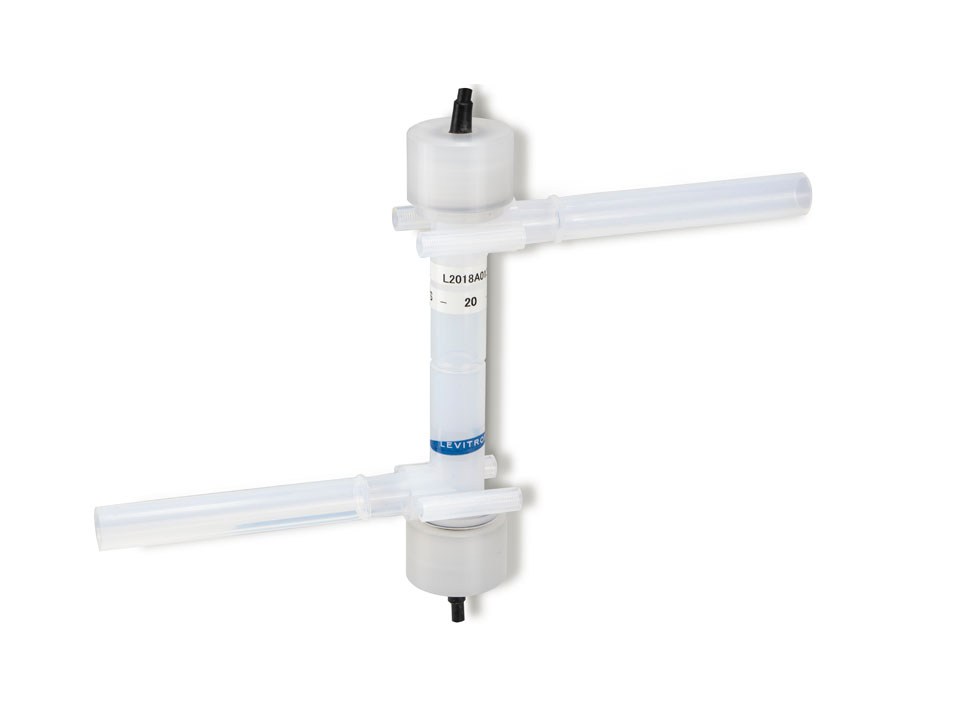

LFS-20: 0 – 20 l/min

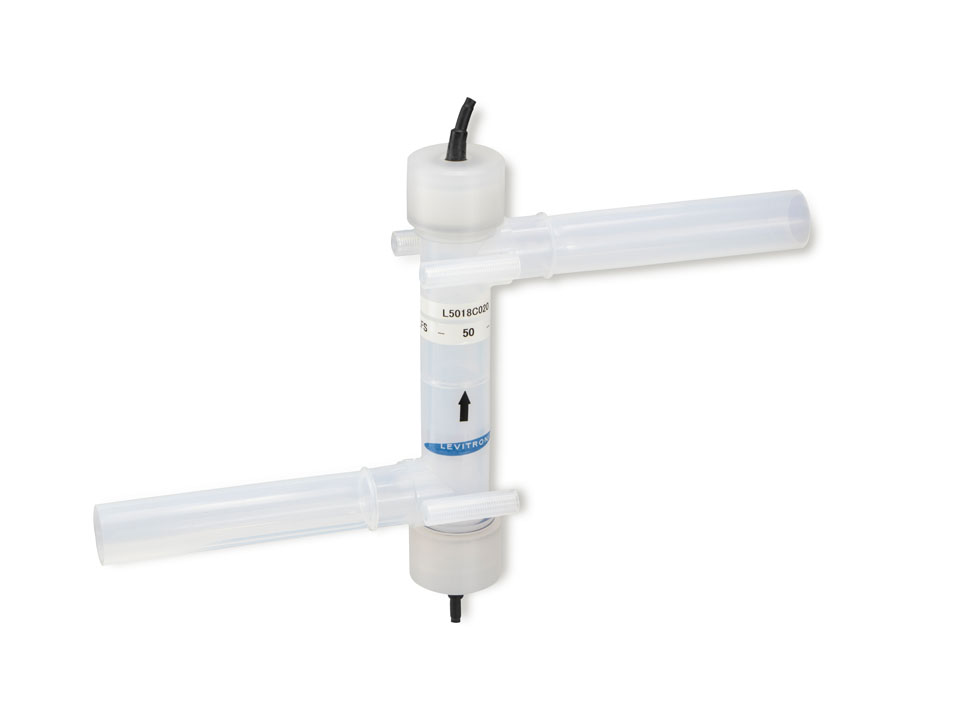

LFS-50: 0 – 50 l/min

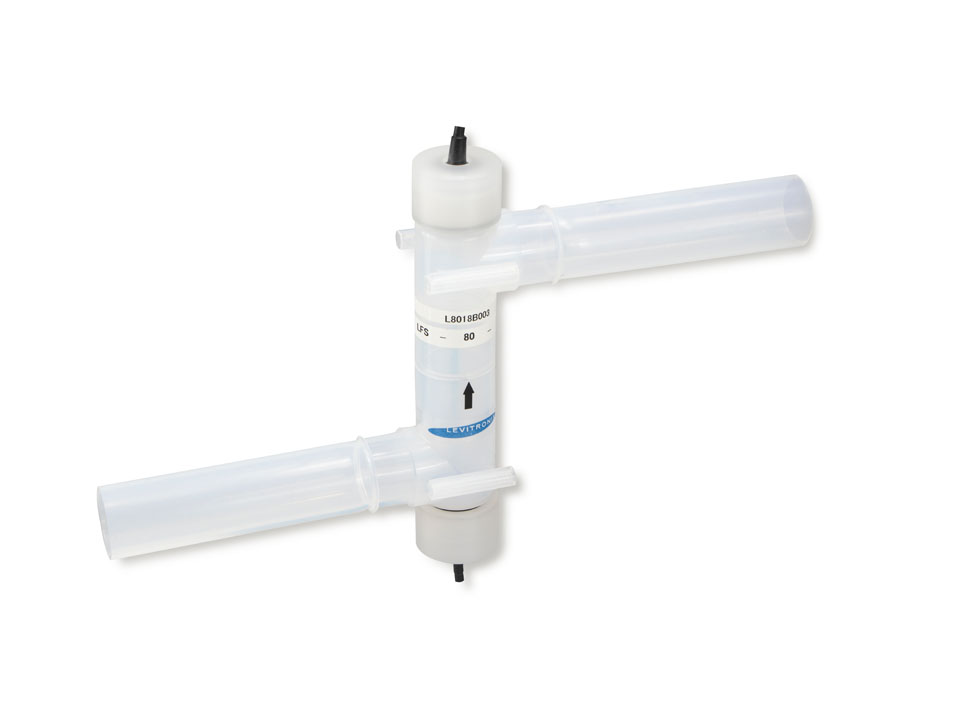

LFS-80: 0 – 80 l/min

(Details see Specifications Tab)
System Benefits

No contamination due to non-invasive measurement

High accuracy (1% of reading) and repeatability (= 0.5%)

No moving parts – no particle generation

Improved bubble robustness due to DSP technology

High precision flow control together with Levitronix MagLevPumps

Easy configurable flow sensor parameters (PC software)


LFS Flowmeter Series – Flow Ranges

LFS-008: 0 – 0.8 l/min
LFS-04: 0 – 4 l/min
LFS-08: 0 – 8 l/min
LFS-20: 0 – 20 l/min
LFS-50: 0 – 50 l/min
LFS-80: 0 – 80 l/min
Materials
PFA

Sensor Enclosure Classification
IP-65

Accuracy
Please see Brochure page 5
( Brochure available in Download Tab)

Standard and Multi Channel Configuration
For high volume applications a multi-channel converter is available, which processes 6 sensors with one single converter. The sensor signals are available by MODBUS interface (RS485), hence reducing significantly cabling, space and costs.

Various signals (analog, digital input and digital output) are provided and can be configured with a PC software. A two wire RS485 bus allows arrays of multiple flowmeters where sensor signals can be received by MODBUS protocol. In addition, the sensor value is shown on a 4-digit display.
The standard configuration of the LEVIFLOW® flowmeters consists of a flow sensor and a converter with a digital signal processor (DSP) for processing the sensor signals.
LEVIFLOW® Interfacing

MODBUS protocol, baud rate 57600

RS485 2 wire cabling

Address potentiometers for RS485 address setting

Up to 64 channels

5 ms DSP process/time per channel

Optional: RS232 to RS485 Converter or USB to RS485 Converter

High purity liquid processes in Semiconductor manufacturing
CMP slurry flow control
Sterile non-invasive flow measurement in Pharmaceutical manufacturing
Flow control in combination with Levitronix MagLev pump systems
